This model of operation microscope is multi-functional and used for a variety of microsurgical applications such as general surgery, ophthalmology, ophthalmic eye surgery, and orthopaedics (orthopedics, surgery related to musculoskeletal injuries). The main features of this surgical microscope are the motorization of the focusing controls and x-y location of field of view. The motors are controlled by the foot.

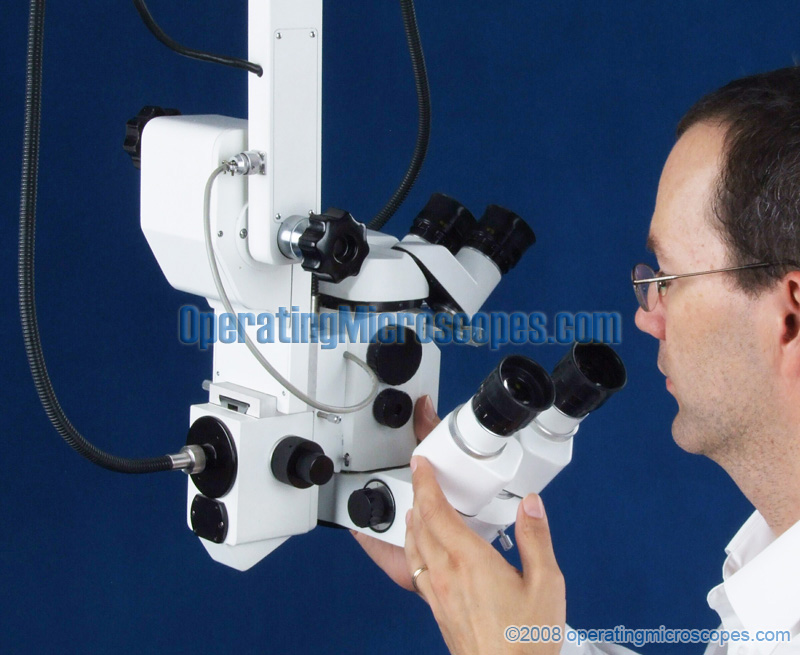

The main head is binocular. The assistant (also called teaching) head is also a binocular. Neither of the heads are the tiltable versions as they are on a fixed angle. To tilt the heads, the surgeon needs to tilt the complete head assembly. One motorized function locates the area of interest in the viewing optics by moving the whole head assembly on an X - Y grid. This motor centers the specimen in the field of view. The master surgeon’s binocular head has a five step magnification while the assistant’s binocular head has a three step magnification allowing different powers to be viewed. Neither of the heads have zoom optics, and the magnifications are independently manually selected.
The oblique illumination can be used for slitting the light, and the slit width is adjustable. The lens is made from high quality imported German glass for reduction in lens aberration. All optics are multi-coated and include mildew proof and anti-reflection coatings. A useful option is an extra monocular teaching tube, allowing a third observer/assistant to view the surgery simultaneously. A built-in beam splitter is included with the microscope. Another option is a ccd camera adapter and ccd camera for taking the video image to a cctv monitor for all in the room to see, or for the surgery to be videotaped. If the bulb fails during the microsurgical procedure, a spare can be quickly engaged. This operation microscope for surgery is made in a US FDA (Food and Drug Administration) registered manufacturing facility as well as has CE certification.
|Magnifications of Eyepiece||12.5x / 18mm|
|Adjustable range of Pupil Distance||50mm to 70mm|
|Illumination Source||12V/100W, Halogen Lamp|
|Illumination Type||6 deg. + 0 deg. coaxial illumination and 25 deg. oblique
illumination. Oblique illumination can be used for
slitting and the slitting angle can be rotated 360 deg.
|Reaching Range of Arm||1040mm|
|Adjustable Vertical Range||850mm to 1350mm|
|Fine Focusing Speed and Range||≤2mm/s, ≥50mm|
|Speed for X/Y and Range||≤2mm/s, 50mm x 50mm|
|Voltage||AC220V / AC110V|
|Fuse||AC250V T4A, AC125V T8A|
|Electrical safety standard||IEC 601-1|
|Whole Packing Volume||0.727 cbm|
|Total Weight||213 Kg|
|Objective/Working Distance (mm)||Magnifications of Main Microscope||Magnifications of Assistant Microscope||Diameter of Field(for Main Microscope)(mm)|
